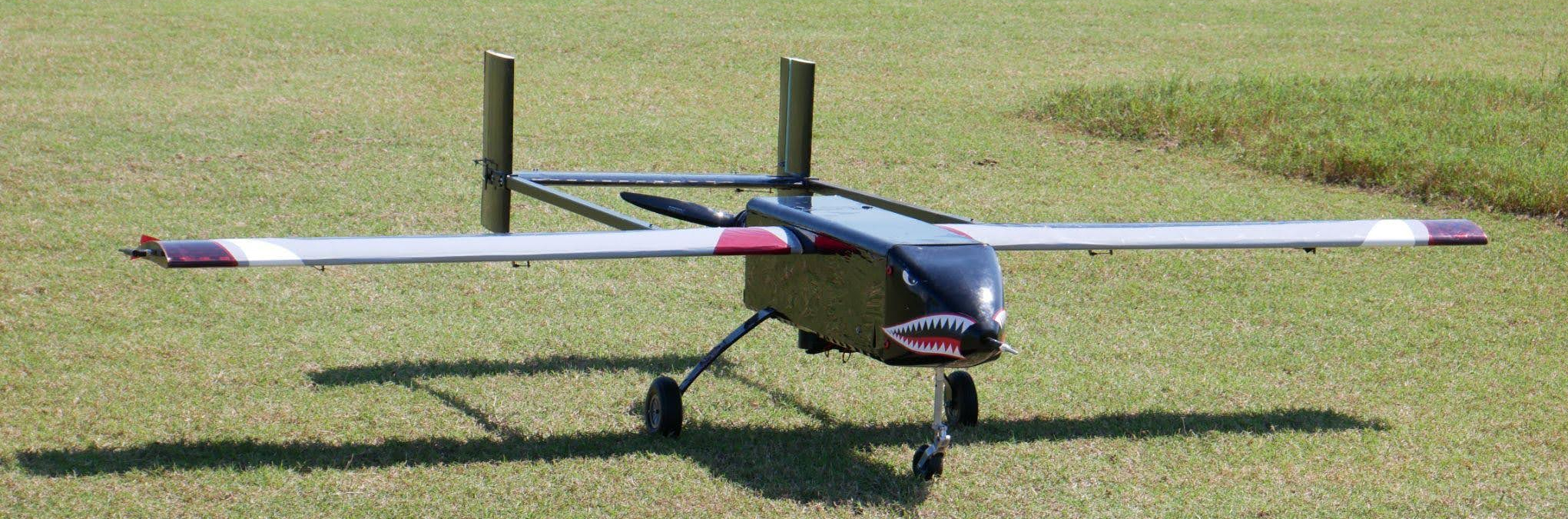

Features

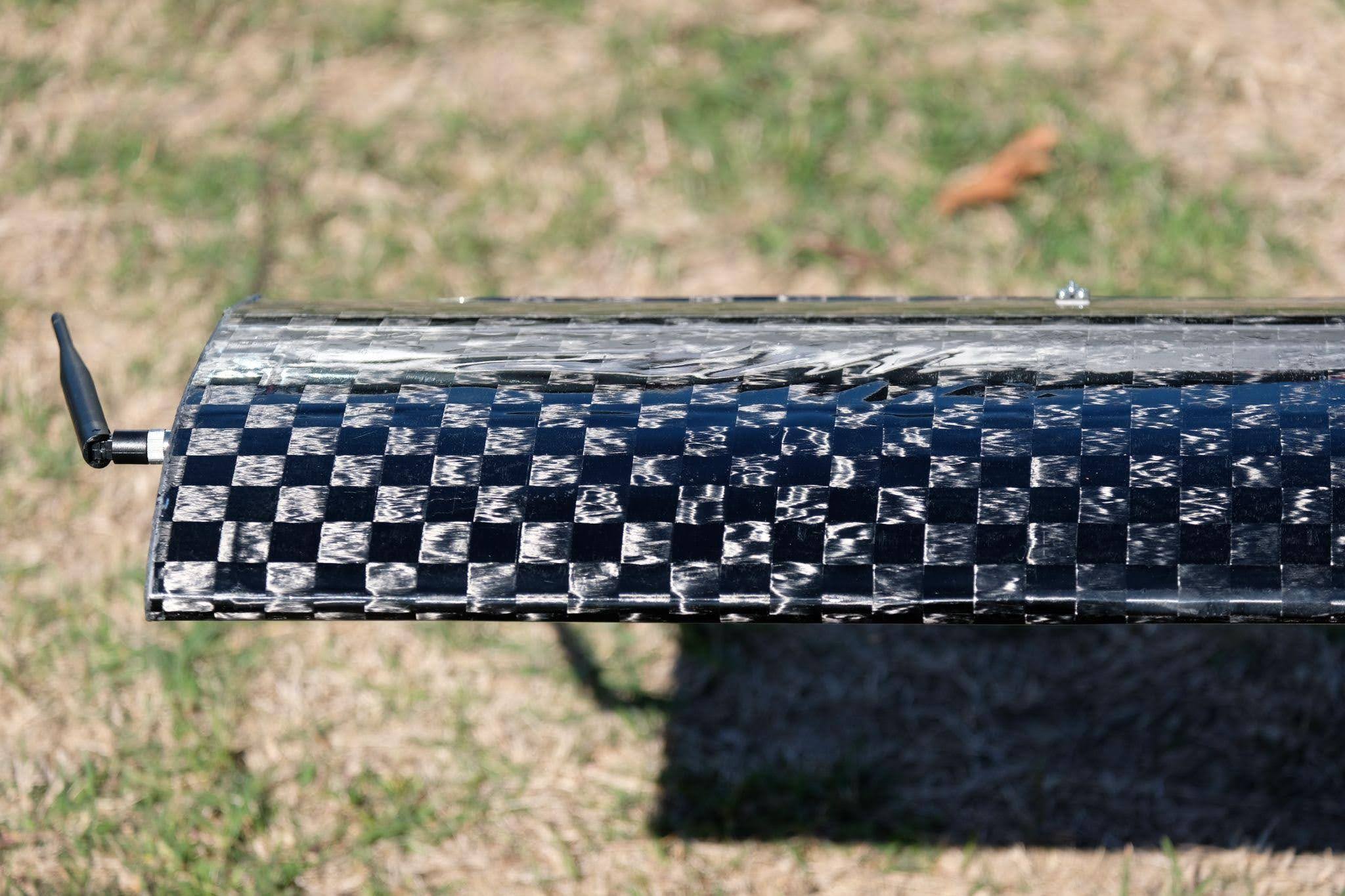

• Built-up construction from laser-cut plywood and carbon composites
• Rail-based payload mounting for easy payload swaps and integration

Dimenions

• Wingspan: 9 ft
• Length: 5 ft
• Height: 8.5 in
• Payload bay: 8.5 in L x 7.57 in W x 5 in H

Weight

• All Up-Weight: 42.5 lbs

Performance

• Max Power: 5 BHP
• Battery Capactiy: 6, 4500 mAh 6S 100 WaHr LiPo Batteries
  • Total: 23S 13500 mAh Battery
• Loiter Endurance: 30 minutes
• Cruise Range: 15 miles
• Stall Speed: 27.5 kias
• Loiter Speed: 30 kias
• Cruise Speed: 40 kias
• Max Allowable Speed: 45 kias
• Takeoff Distance over a 50ft obstacle: 150 ft
• Landing Roll: 100 ft
• Max Rate of Climb: 500 ft/min
• Stability Margin (full payload): 0.33
• Stability Margin (half payload): 0.1

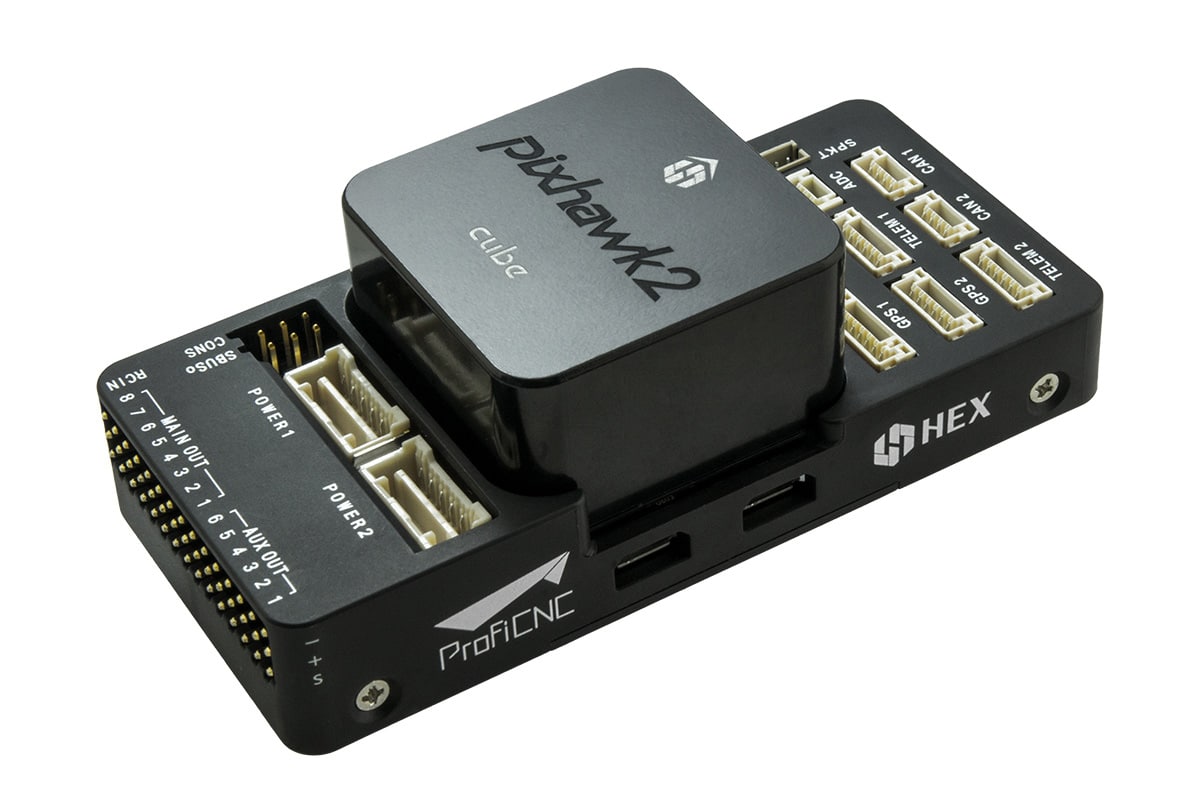

Pixhawk 2.1

Capabilities

• Fully autonomous flight
• Fully autonomous takeoff and landing
• Easy dynamic retasking through ground station

Image Capture

• Sony RX0II Camera for image capture
• High resolution, at an effective 15.3 megapixels

Imagery Infrastructure

• Onboard flight computer for control and storage, even in the event of communication loss
• Near real-time still image downlink, 70Mbps link to the ground
• RAID-backed database of all imagery ever captured - over 60,000 images total

Image Analysis

• Easy-to-use image software aids analysts in quickly detecting and identifying targets
